Assign UQAM-DEV Software

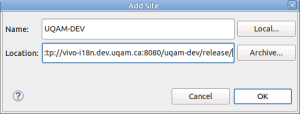

In the Add Site form, provide the following name and URL:

UQAM-DEV

http://vivo-i18n.dev.uqam.ca:8080/uqam-dev/release/

Then click OK and then OK again in the preference window.

Image Removed

StepDescription

2.1 Unzip and launch Topbraid Composer

In your favorite directory (ex.: in my case C:\60-UQAM-DEV-Rev4), unzip the tbcfe package and click on the executable to launch the application.



By default, Tobbraid will ask you to select a workspace. The actual location of that workspace has little importance. You can locate it wherever you want, choose to use it as default if desired, and proceed.

Topbraid will then display a general information window. Dismiss it to get to main interface:

2.2 Installing UQAM-DEV with Topbraid Installing new Software

Under Help Menu, Select Install New Software


2.3 Adding Software Site

From the Available Software window, enter

http://vivo-i18n.dev.uqam.ca:8080/uqam-dev/rev400/

in the Work With Field and select all check box

Then click on the next button.

2.4

2.7

Complete the installation

Answer positively to all the questions and finalize the installation by clicking on Finish.

The following dialogue should appear and you just have to wait a little while until the process is complete.

You will be asked security questions, you must accept them by clicking on the OK button.

At the end of the installation, you will be offered to restart Eclipse. Click Yes.


2.

8

5 Complete the configuration

For this configuration step, Eclipse will restart twice. You will therefore see those two splash screens appear before you can access your workspace.

...

Here are a few observations that will help ensure that UQAM-DEV is correctly configured

ObservationDescription

3.1

)

Perspectives and projects

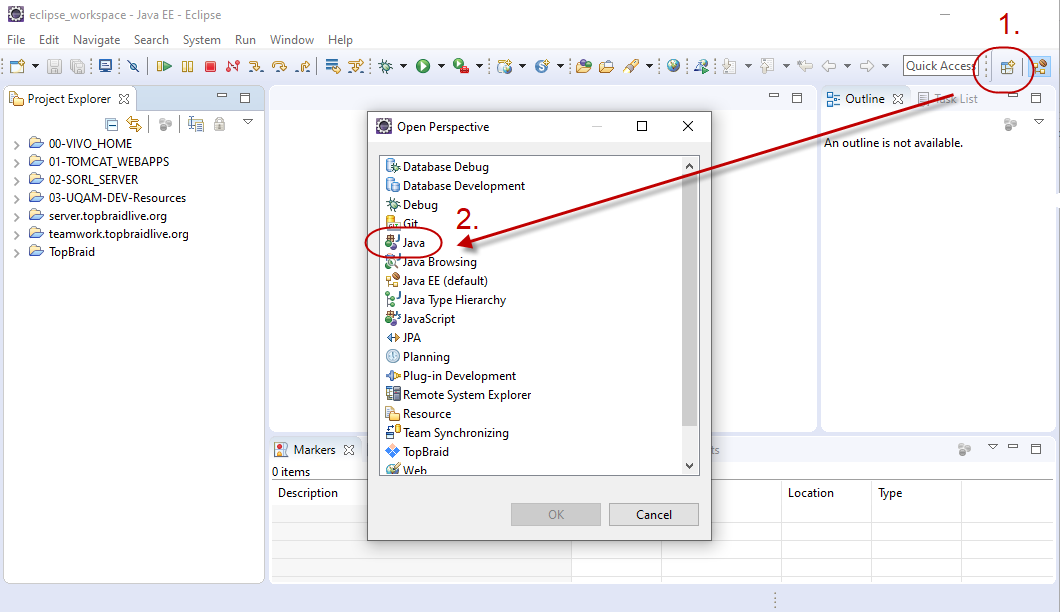

After the UQAM-DEV has been installed:

  1. Click the Open Perspective icon
  2. Select Java

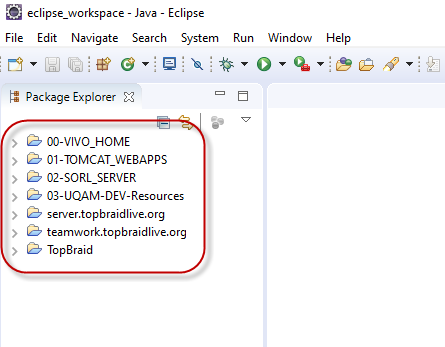

The list of projects should appear as shown in the second image.


Image RemovedImage RemovedImage AddedImage Added

3.2

)

Project Contents

Each project starting with a number contains a list of files needed to run VIVO. Make sure that the files that are part of your installation look like the figure shown here

3.3

)

Setup External Tools

This step completes and validates the installation of the external tools that are ready to be configured in UQAM-DEV.

  1. scroll down the menu corresponding to the external tools button, and choose organize favorites...
  2. in the dialog box that will appear, click on Add..., then Select All, then OK and OK.
  3. by clicking the external tools button again you should see the list of shortcuts allowing you to perform the actions necessary to manage VIVO.

3.4

)

Setup Run Configurations

This step completes and validates the installation of the run tools that are ready to be configured in UQAM-DEV.

In 1) scroll down the menu corresponding to the Run button, and choose organize favorites...

In 2) in the dialog box that will appear, click on ADD, then Select All, then OK and OK.

In 3) by clicking the Run button again you should see the list of shortcuts allowing you to perform the actions necessary to compile VIVO.

1)

2)

3)

3.5

)

Validating Servers installation

With the file manager, access the directory containing eclipse. Observe in this directory if the four servers are present as shown in the figure.

Image RemovedImage Added

Conclusion

At the end of this procedure you should have a complete installation of the UQAM-DEV. You can refer to the other documents in this wiki to learn how to compile and run a VIVO instance.

...

NameURL
UQAM-DEV Rev 4 updateSitehttp://vivo-i18n.dev.uqam.ca:8080/uqam-dev/releaserev400/
